Data Center Ceilings & Accessories
Gordon Offers a variety of ceiling panel options to suit your requirements and to provide a complete data center ceiling system. With strategic partnerships in the industry, Gordon can combine ceiling panels and Gordon Grid™ together all in one package.
Data Center – Ceiling Panels
DataVENT AIR RETURN PANELS
- Cell size: 1/2″ x 1/2″
- Panel height: 1/2″
- 92% open area
- Nominal 2′ x 2′, 2′ x 4′, 4′ x 4′ panel sizes. Custom sizes available upon request
- Standard finish: White powder coat (Also available in Black)
HONEYCOMB PANELS
- Top and Face Plates: Aluminum Alloy 5052-H32, .032 Thick
- Standard Finish: White Epoxy
- Nominal 2′ x 2′, 2′ x 4′, 4′ x 4′ panel sizes
- 1/4″ Thickness
TWIN WALL POLYCARBONATE PANELS
- Perfect for luminous ceiling applications
- 10mm thickness
- Light reflectance = 33.9%
- Nominal 2′ x 2′, 2′ x 4′, 4′ x 4′ panel sizes
- Standard colors: White or clearcoat
ACOUSTIC PANELS
Rockfon Arctic®
- Material: Stone wool (Mineral Wool) ceiling tiles with factory applied water-based paint on glass scrim surface.
- Dimensions: 23 1/8″ x 47 1/8″ x 5/8″ Thick. No cutting required to fit in Gordon DG Grids.
- Acoustics: NRC = 0.75
- Fire Class: A; Surface Burning UL-723 / ASTM E-84
Rockfon Tropic®
- Material: Stone wool (Mineral Wool) ceiling tiles with factory applied water-based paint on glass scrim surface.
- Dimensions: 23 1/8″ x 47 1/8″ x 5/8″ Thick. No cutting required to fit in Gordon DG Grids.
- Acoustics: NRC = 0.85
- Fire Class: A; Surface Burning UL-723 / ASTM E-84
Data Center – Ceiling Accessories

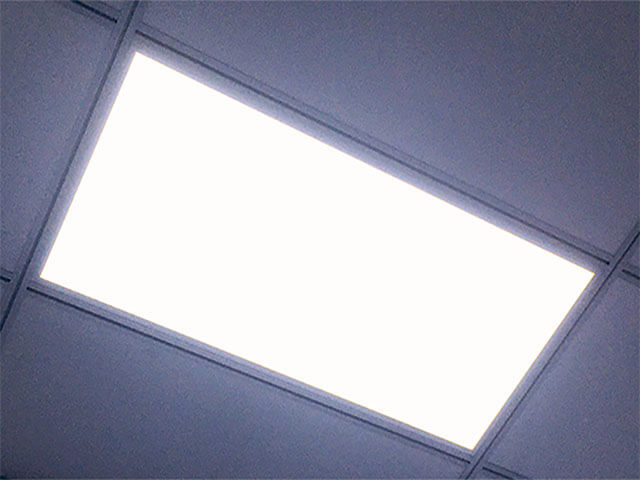

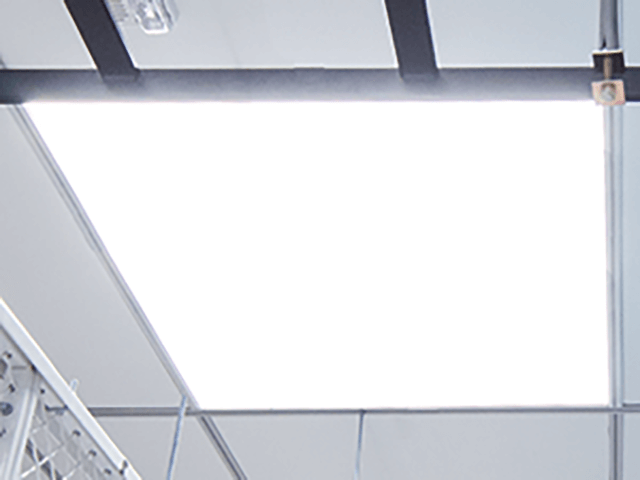

DataLUME 2′ x 4′ LED Light Panels are specifically designed to lay-in DG suspension systems.
- Panel frame is extruded aluminum, painted white
- Ultra thin for narrow plenums
- Fits standard T-bar and narrow grid drop ceilings
- 7/8″ conduit knock out provided
- c ETLus, Fcc Certified
